Product Description
• Maximum dynamic range up to 45dB
• Event dead zone as low as 0.8m
• Attenuation dead zone only 2.5m

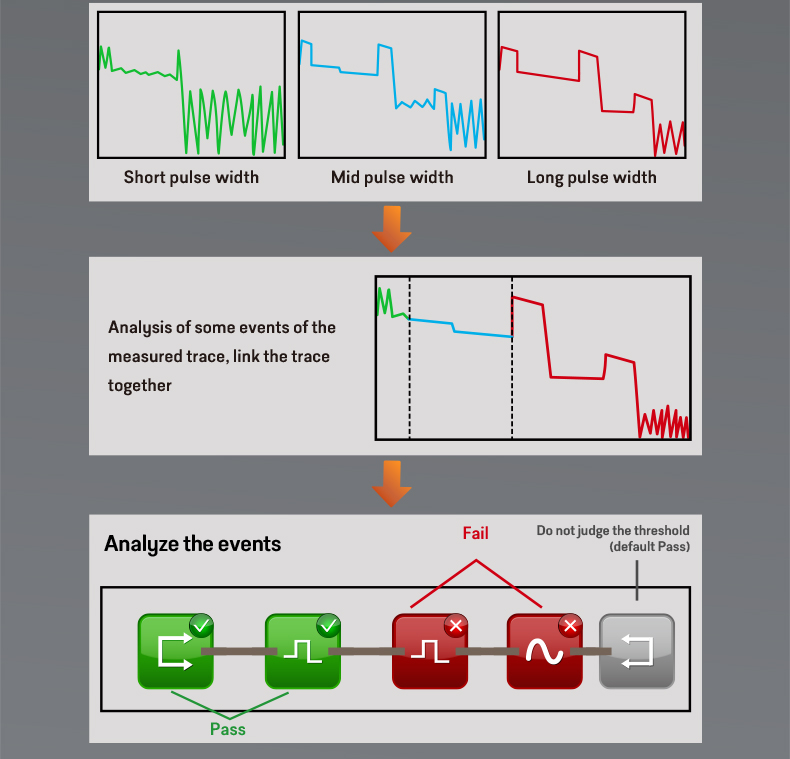

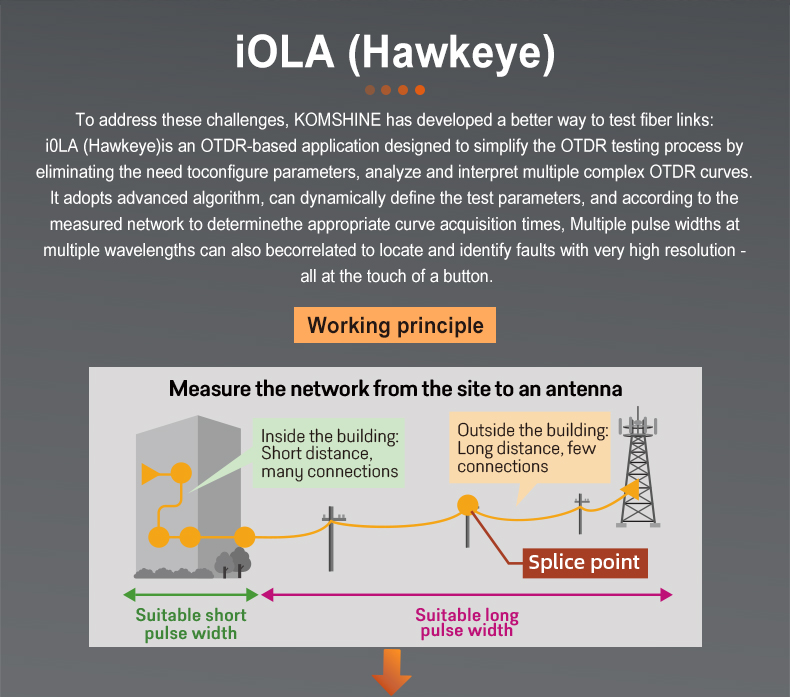

• Intelligent iOLA one-click fiber testing

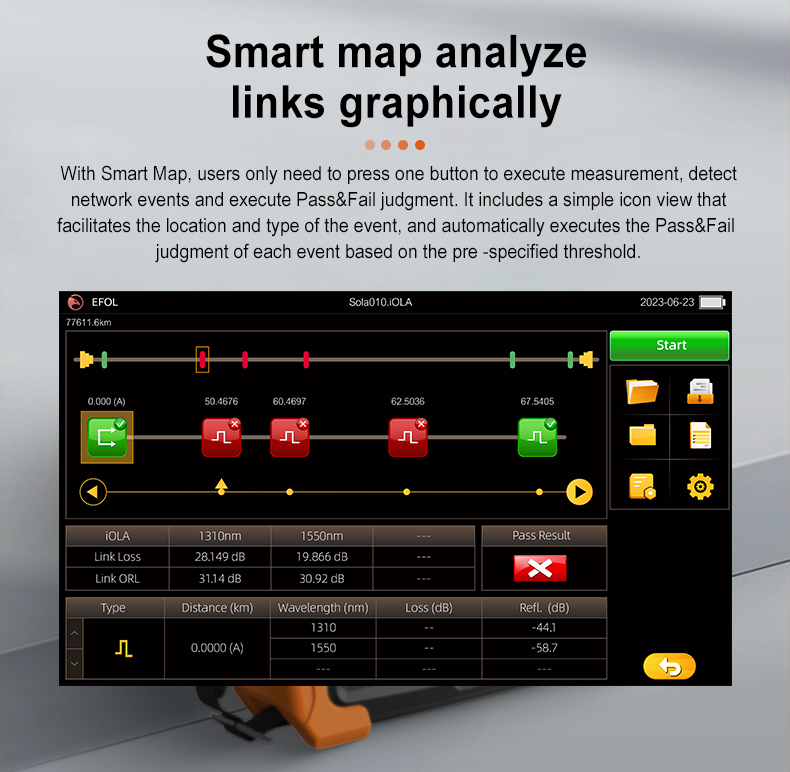

• Smart Link Map with graphical analysis

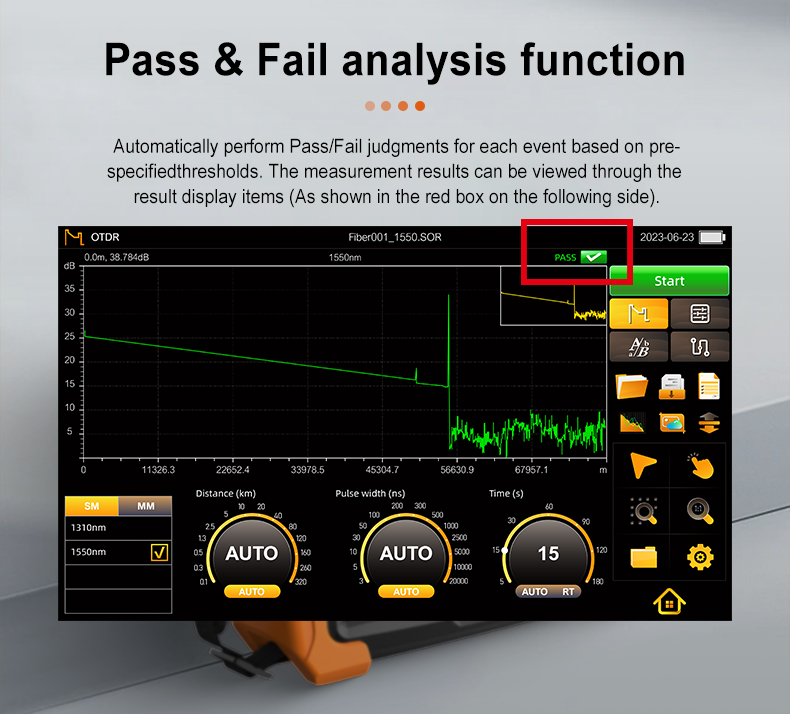

• Automatic Pass & Fail judgment

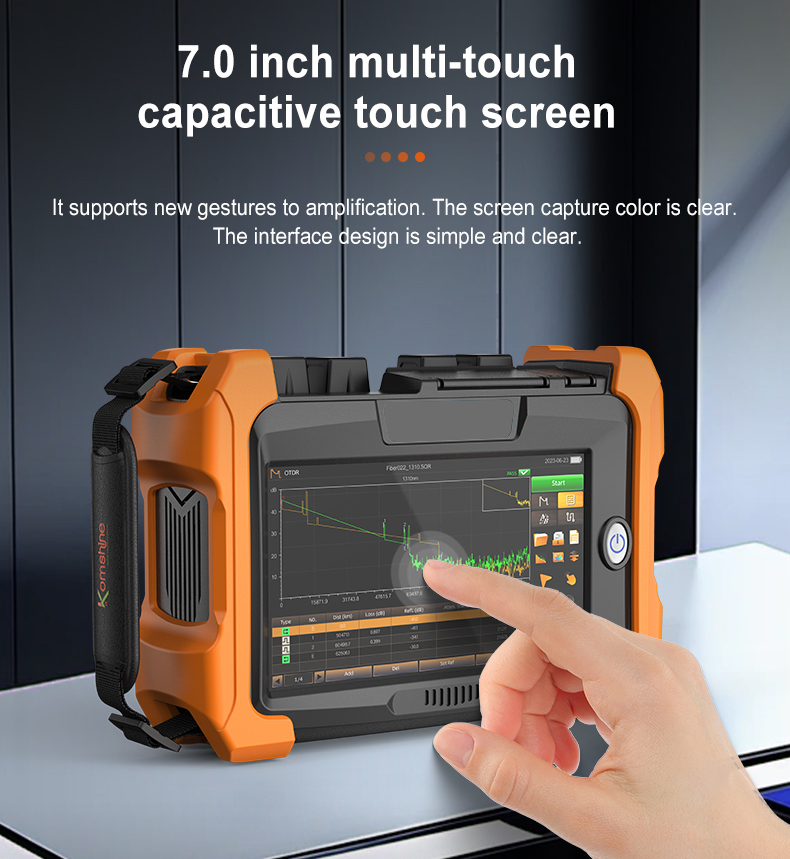

• 7-inch capacitive multi-touch display

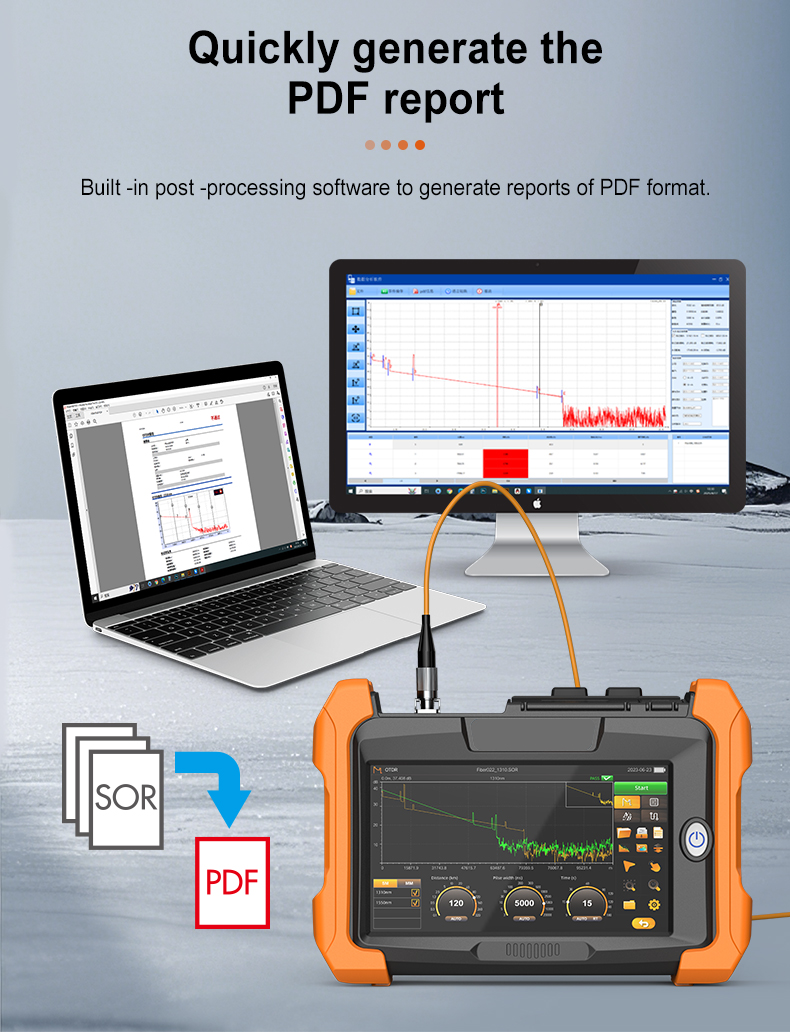

• Generate SOR and PDF reports instantly

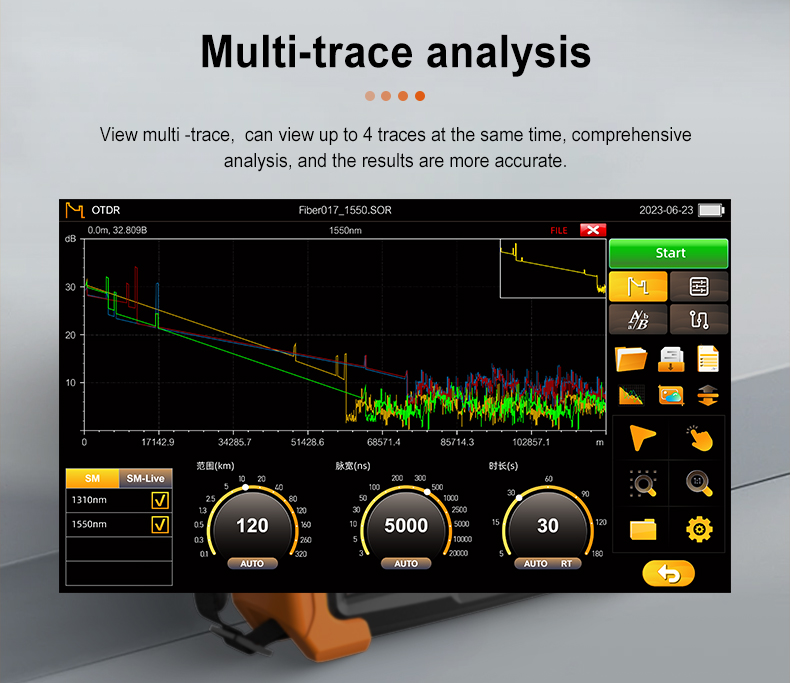

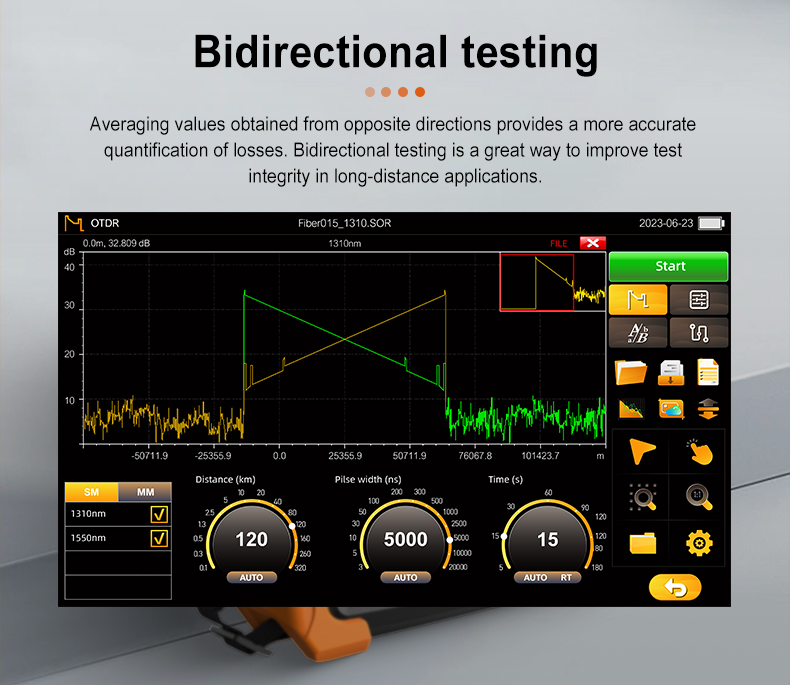

• Multi-trace analysis and bidirectional testing

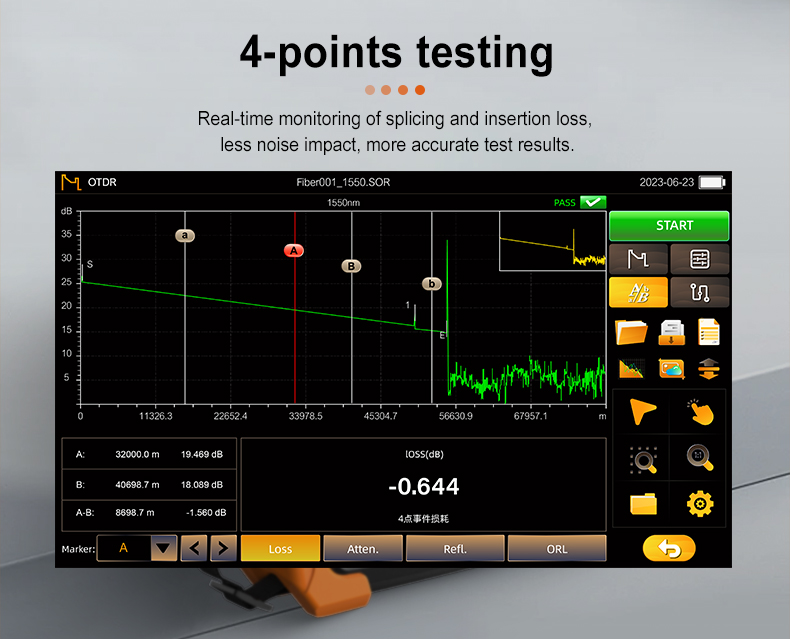

• 4-point loss measurement
• Maximum 250,000 sampling points
• Minimum sampling resolution 0.04m

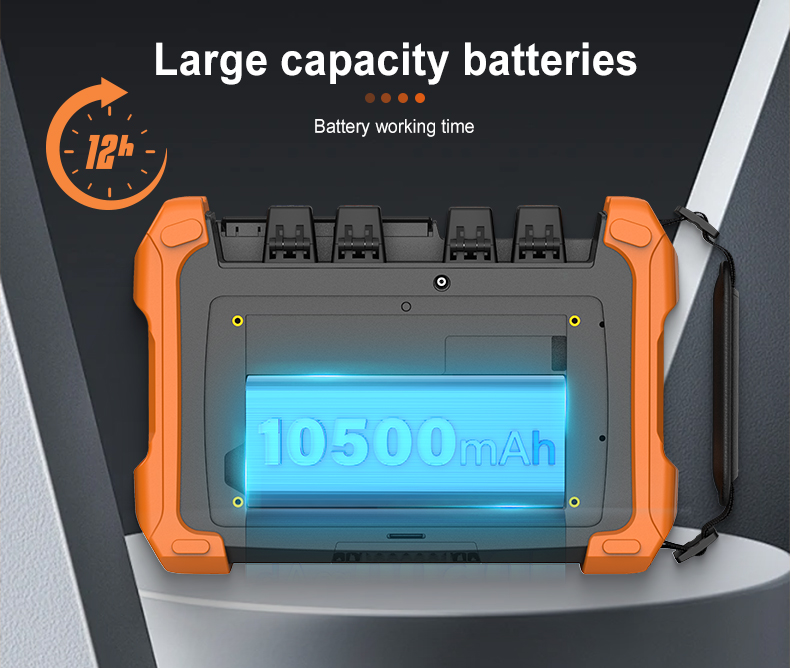

• Up to 12 hours battery operation

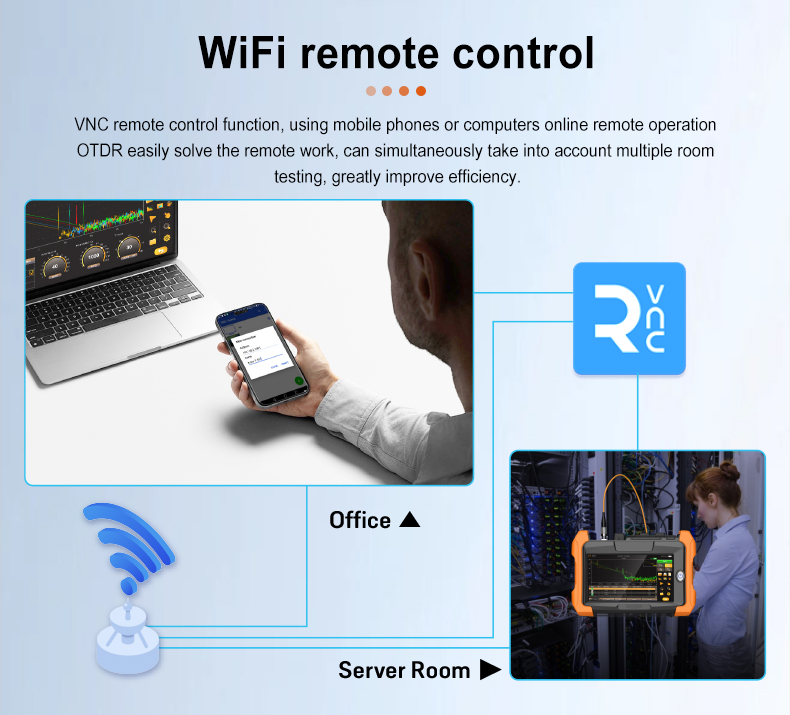

• Built-in WiFi remote control (VNC)

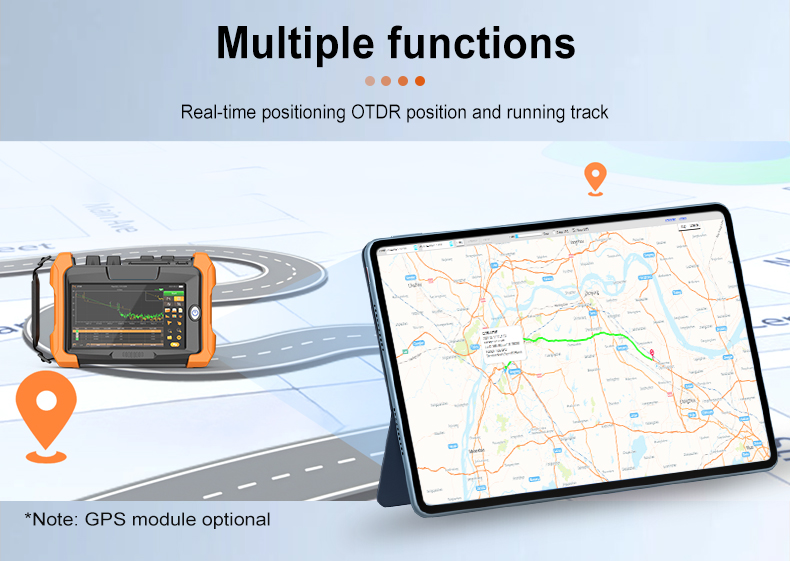

• Optional GPS positioning

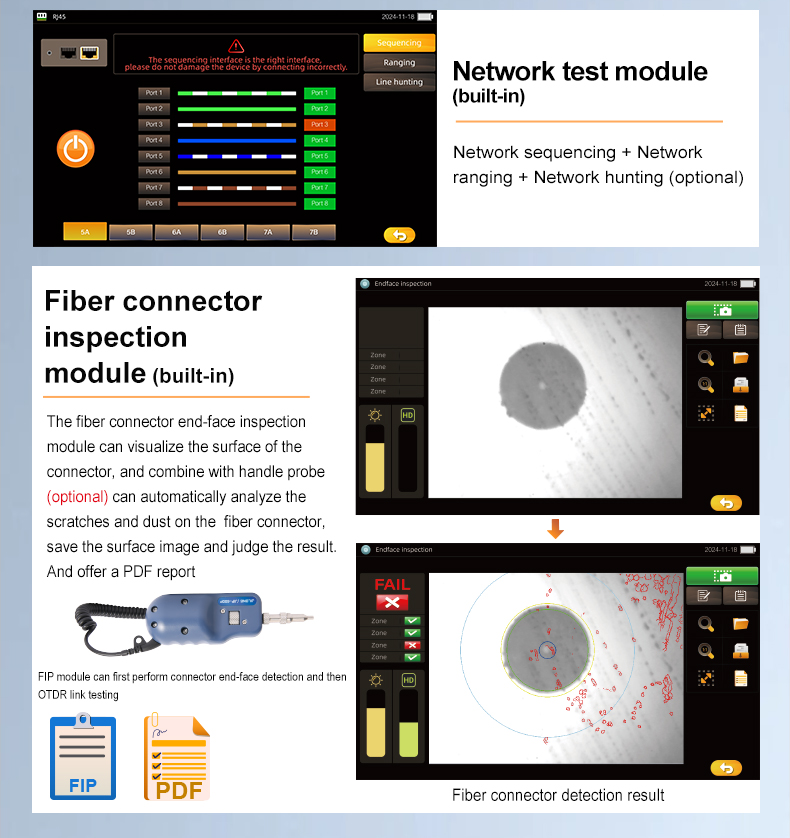

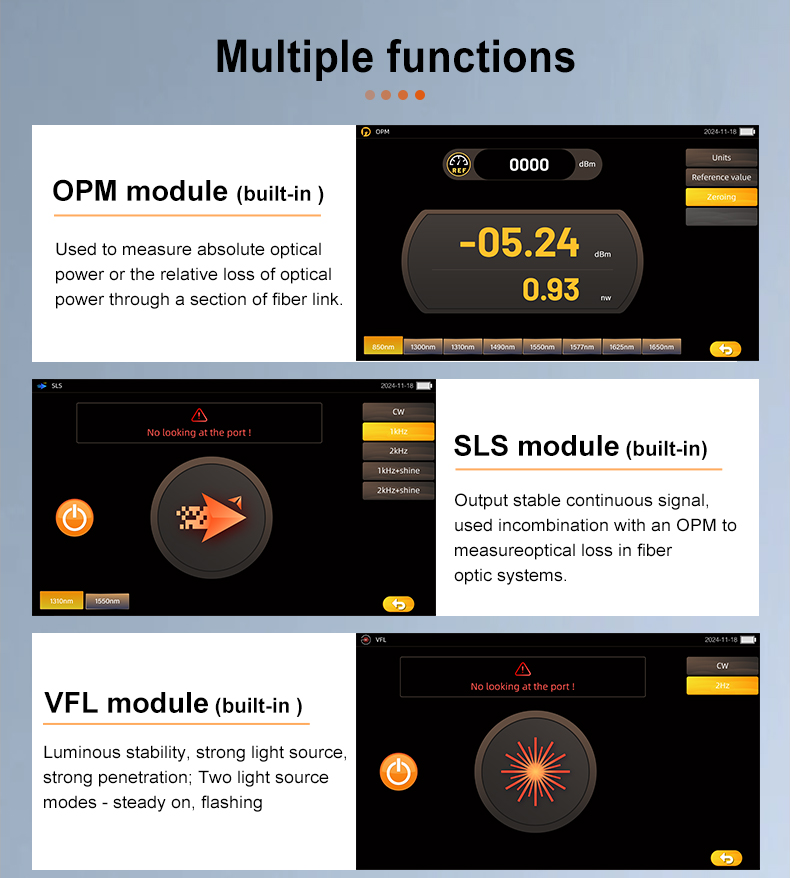

• Optional OPM, VFL, SLS, RJ45 and Fiber Inspection Probe
• Supports FTTx, PON, Metro, Core and Access Networks
• Rugged shock-resistant industrial design

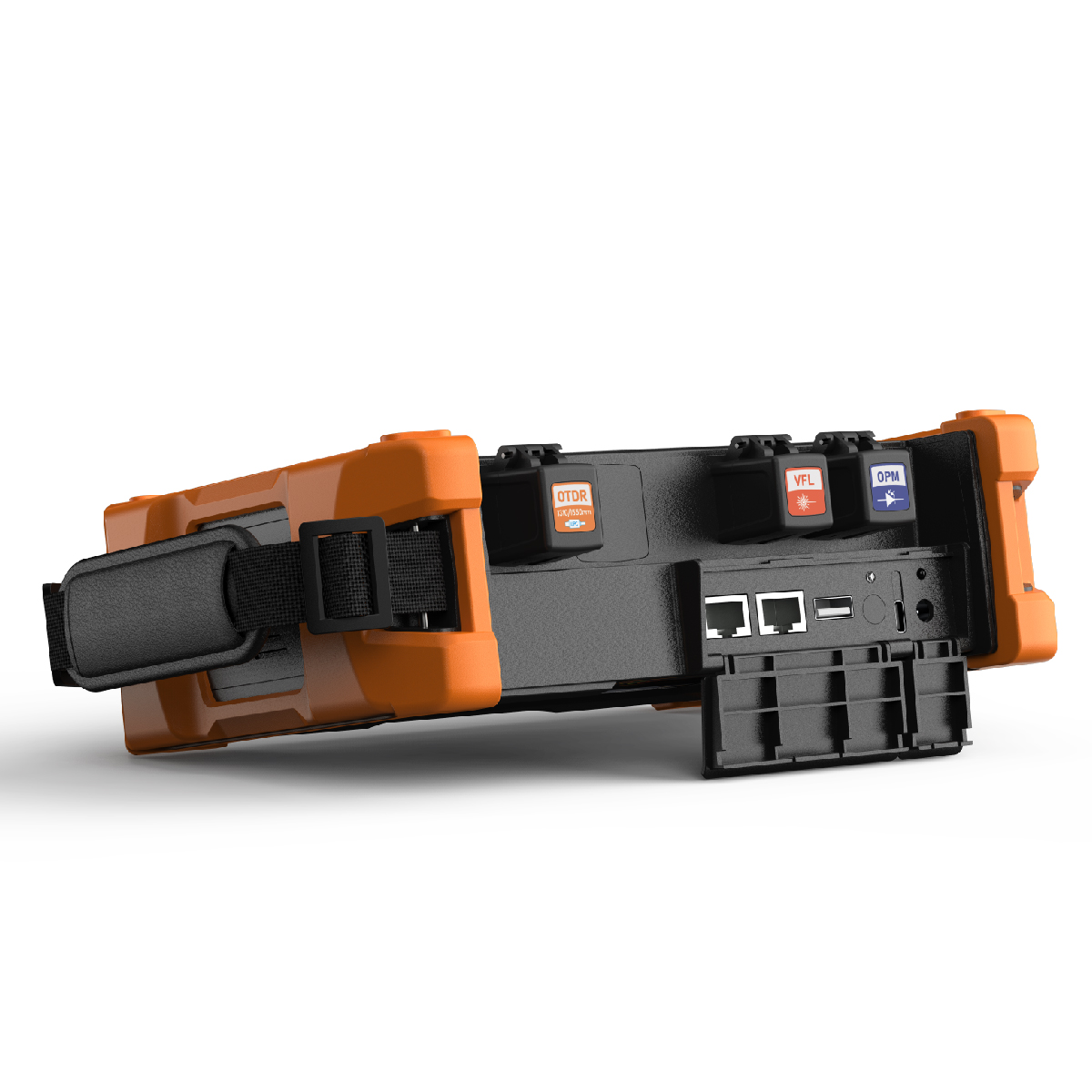

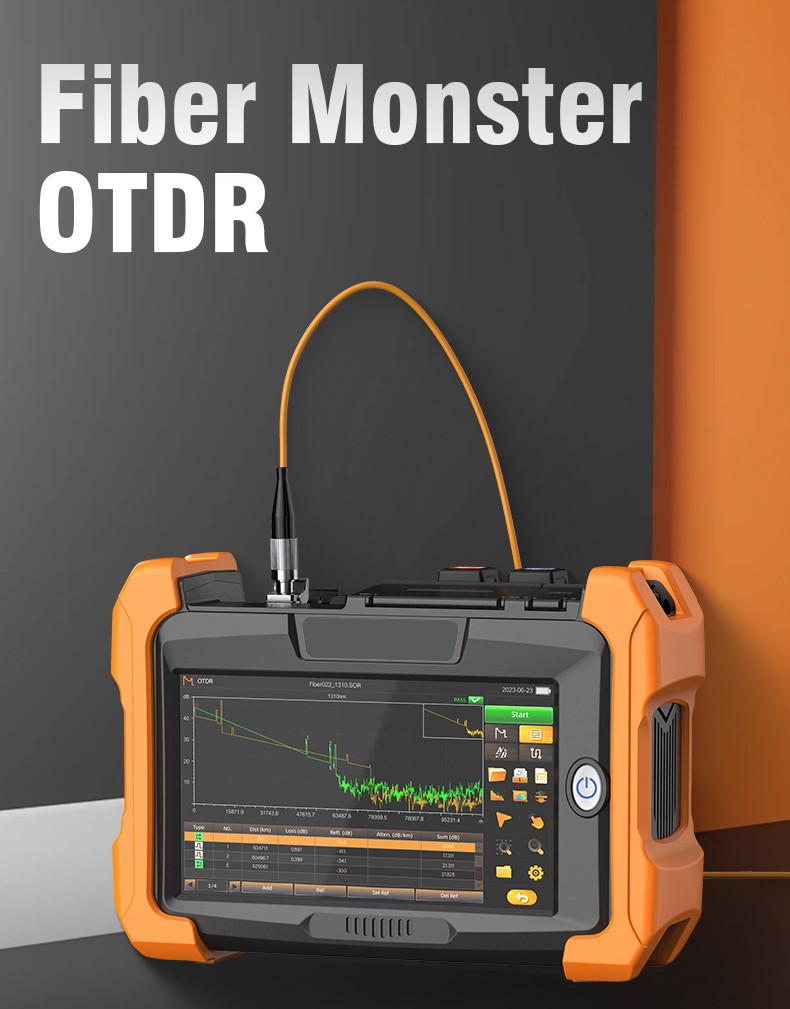

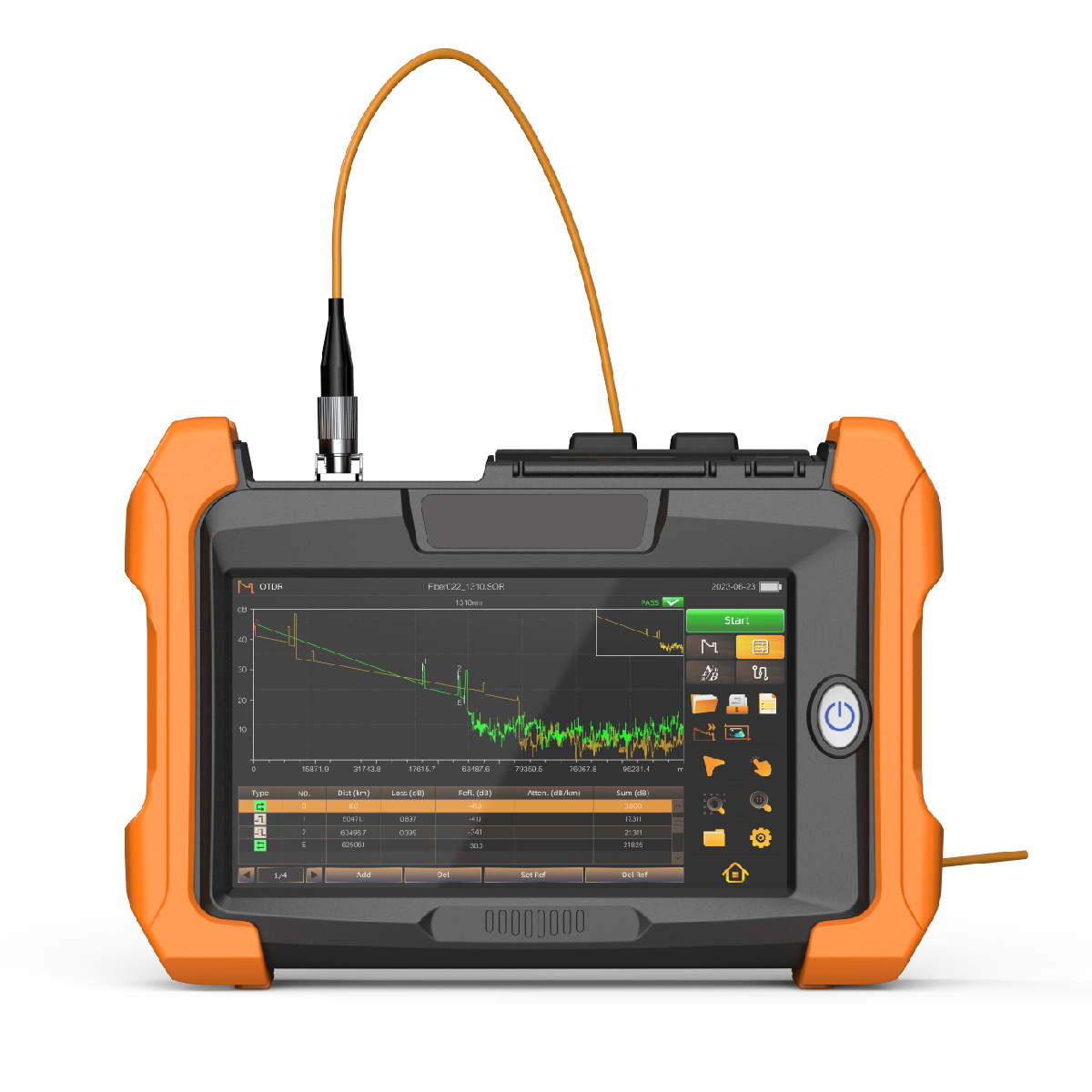

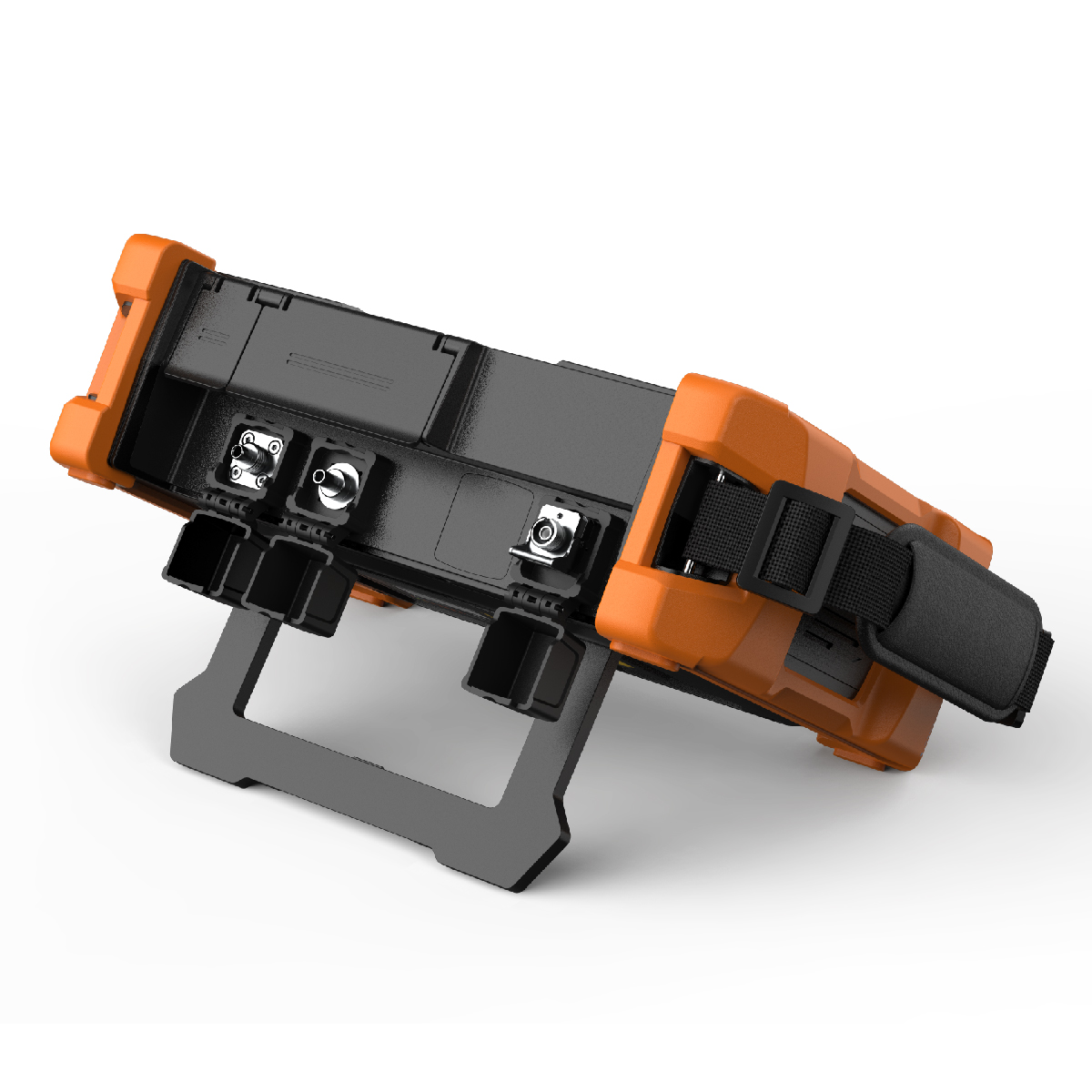

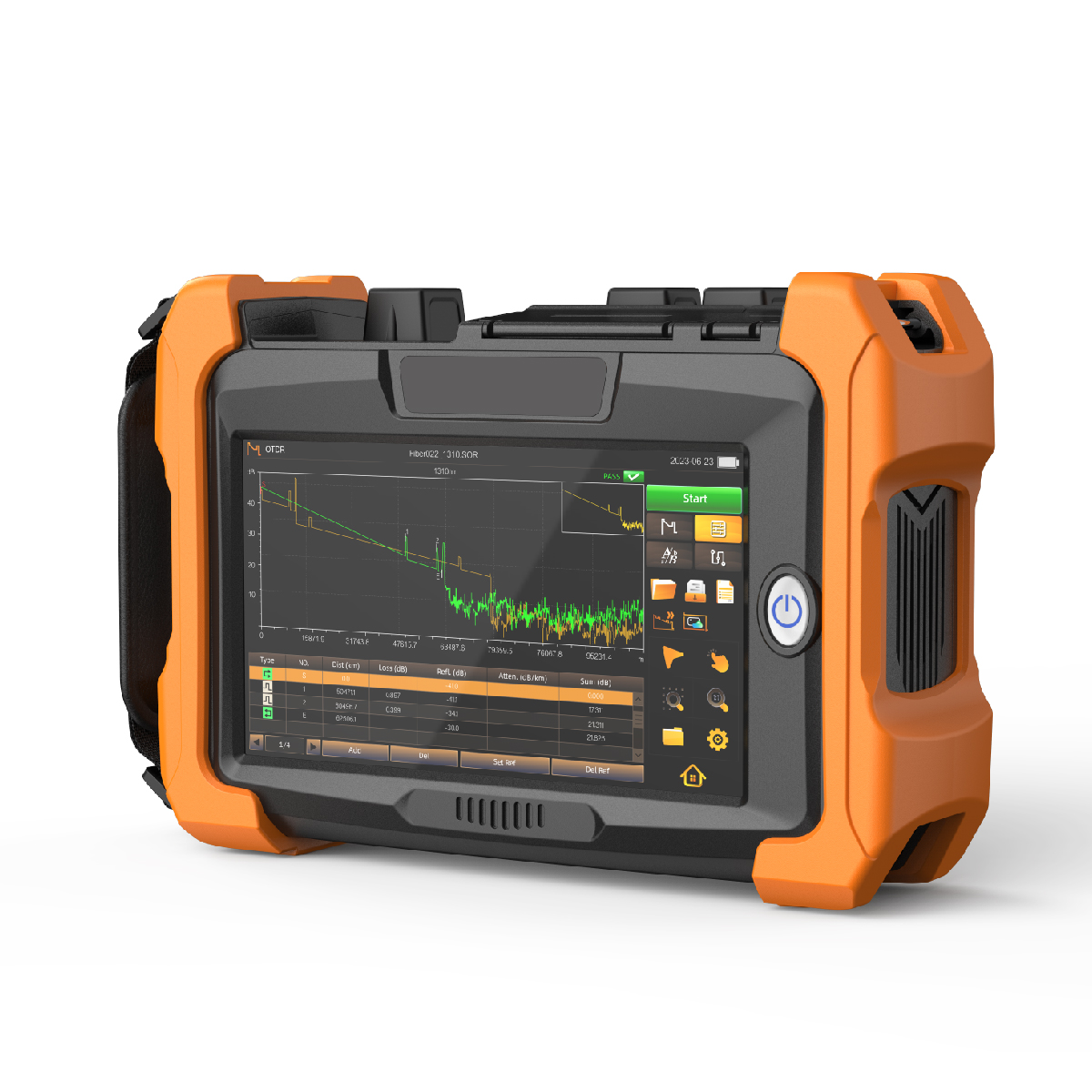

QX65 Fiber Monster OTDR Optical Time Domain Reflectometer with iOLA Smart Test & Multi-Function Modules
The QX65 Fiber Monster OTDR is a next-generation optical time domain reflectometer designed for fiber optic installation, maintenance, troubleshooting, and PON network testing. Featuring an advanced testing algorithm, up to 45dB dynamic range, and a 7-inch capacitive multi-touch display, it delivers fast, accurate, and intelligent fiber measurements for telecom engineers and network operators. Equipped with intelligent iOLA one-click testing, Smart Link Map, Pass/Fail analysis, bidirectional testing, and multi-trace analysis, the QX65 significantly simplifies complex fiber diagnostics while improving testing efficiency. The device supports multiple OTDR models for access, metro, core, and PON networks, with optional built-in modules including Optical Power Meter (OPM), Stabilized Light Source (SLS), Visual Fault Locator (VFL), RJ45 Network Test, Fiber Inspection Probe (FIP), GPS positioning, and WiFi remote control. Designed with a rugged shock-resistant housing, 12-hour battery life, 250,000 sampling points, and 0.04m sampling resolution, the QX65 is an ideal solution for FTTx deployment, data centers, telecom operators, ISP maintenance, and enterprise fiber networks.
