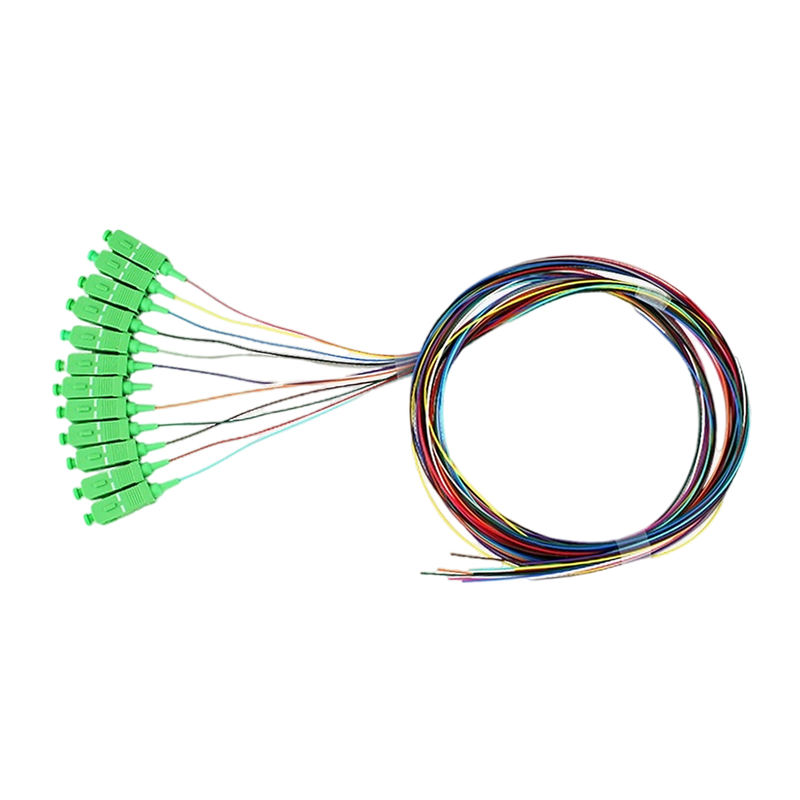

The F101-GPT02 is a 12-core indoor breakout fan-out fiber pigtail. It fans out from a distribution cable into 12 individually jacketed fibers, each terminated with an SC connector — designed for indoor high-density splicing and patching.

Key Features:
• 12-core fan-out breakout design for indoor use
• Available in singlemode 9/125μm or multimode OM3/OM4
• SC connectors with UPC or APC polish options
• LSZH / OFNR / PVC jacket choices
• Low insertion loss ≤0.2dB, high return loss
• 100% optically tested, RoHS compliant
• 1-year warranty, OEM/ODM available

Specifications:
Model: F101-GPT02
Fiber Type: Singlemode 9/125μm / Multimode OM3/OM4 (50/125μm)
Core Count: 12 cores (customizable)
Connector: SC (UPC / APC)
Jacket: LSZH / OFNR / PVC
Insertion Loss: ≤0.2 dB typical
Return Loss: ≥50 dB (UPC) / ≥60 dB (APC)
Operating Temperature: -20°C ~ +70°C
Length: Customizable

Applications: Indoor ODF patch panels, FTTH distribution frames, PLC splitter splicing, and data center structured cabling.
