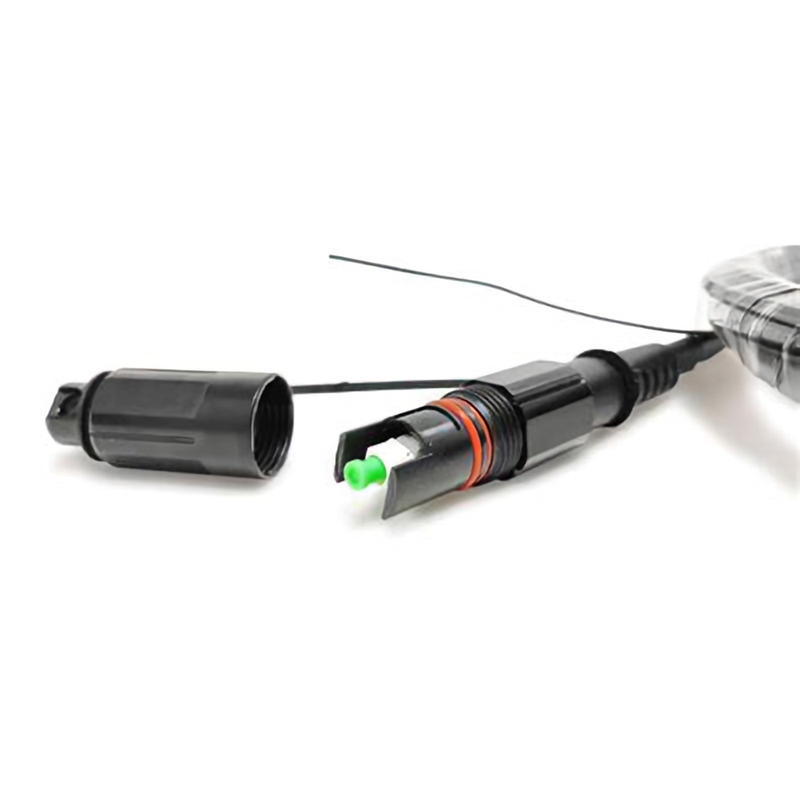

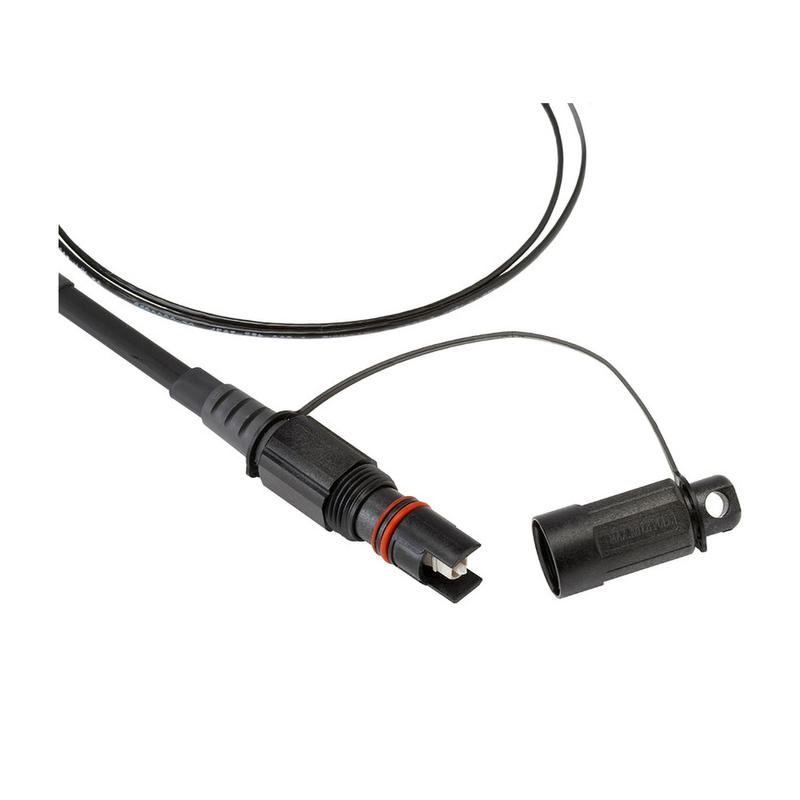

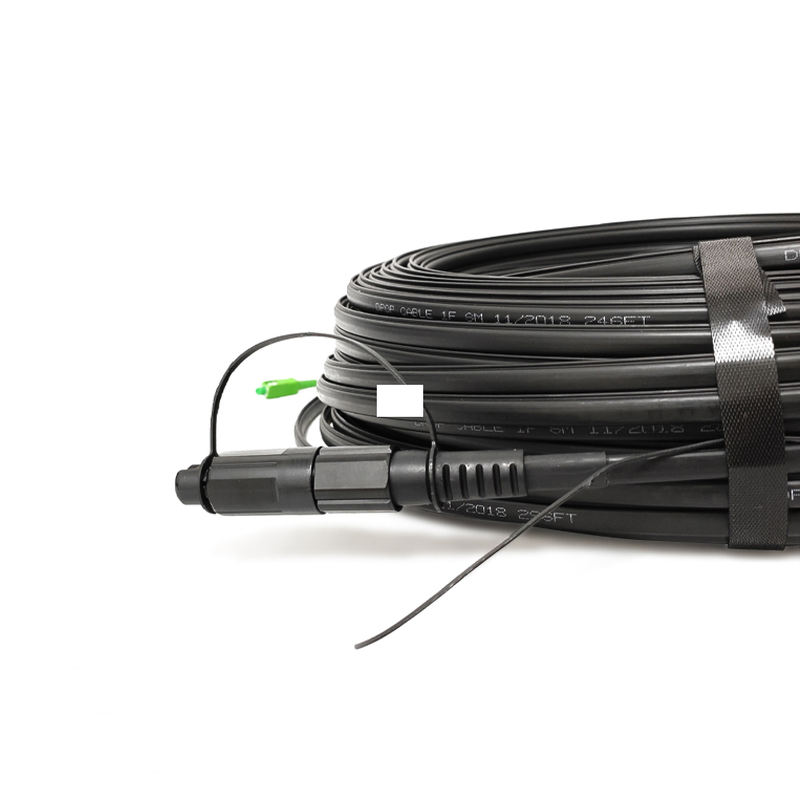

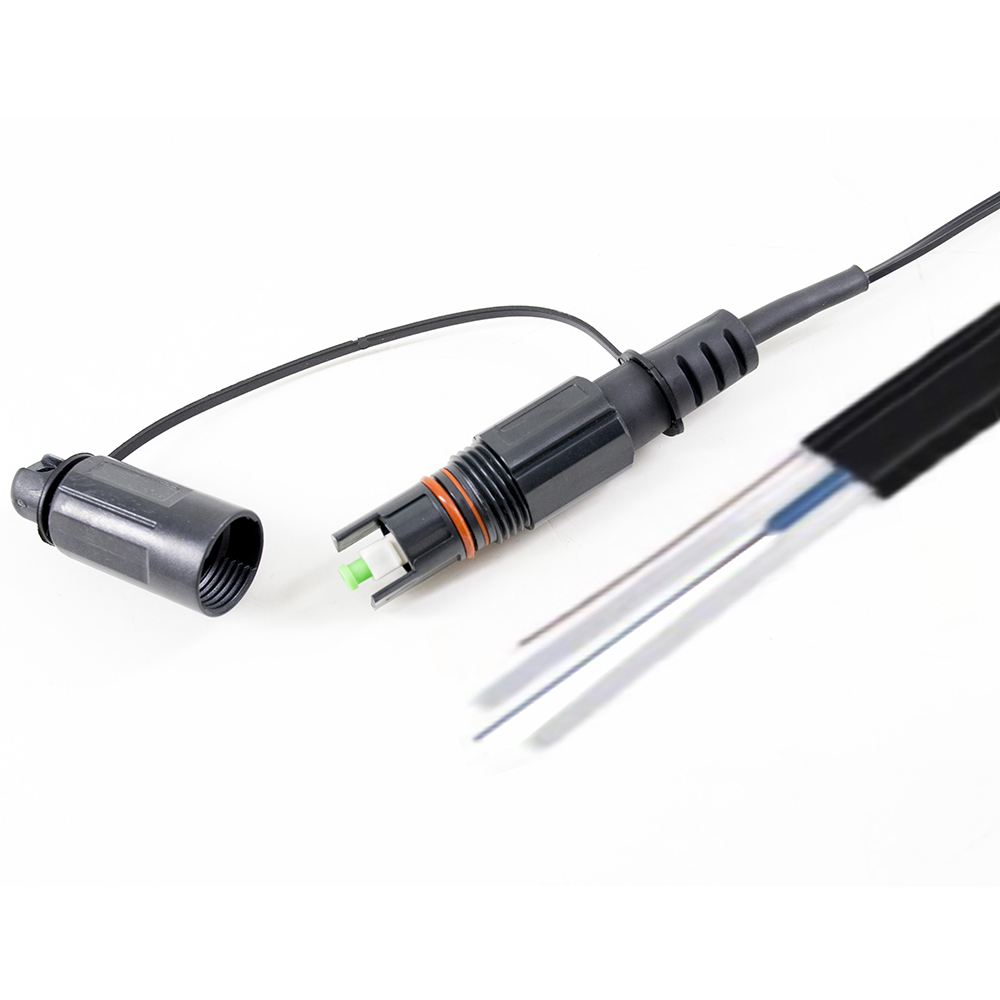

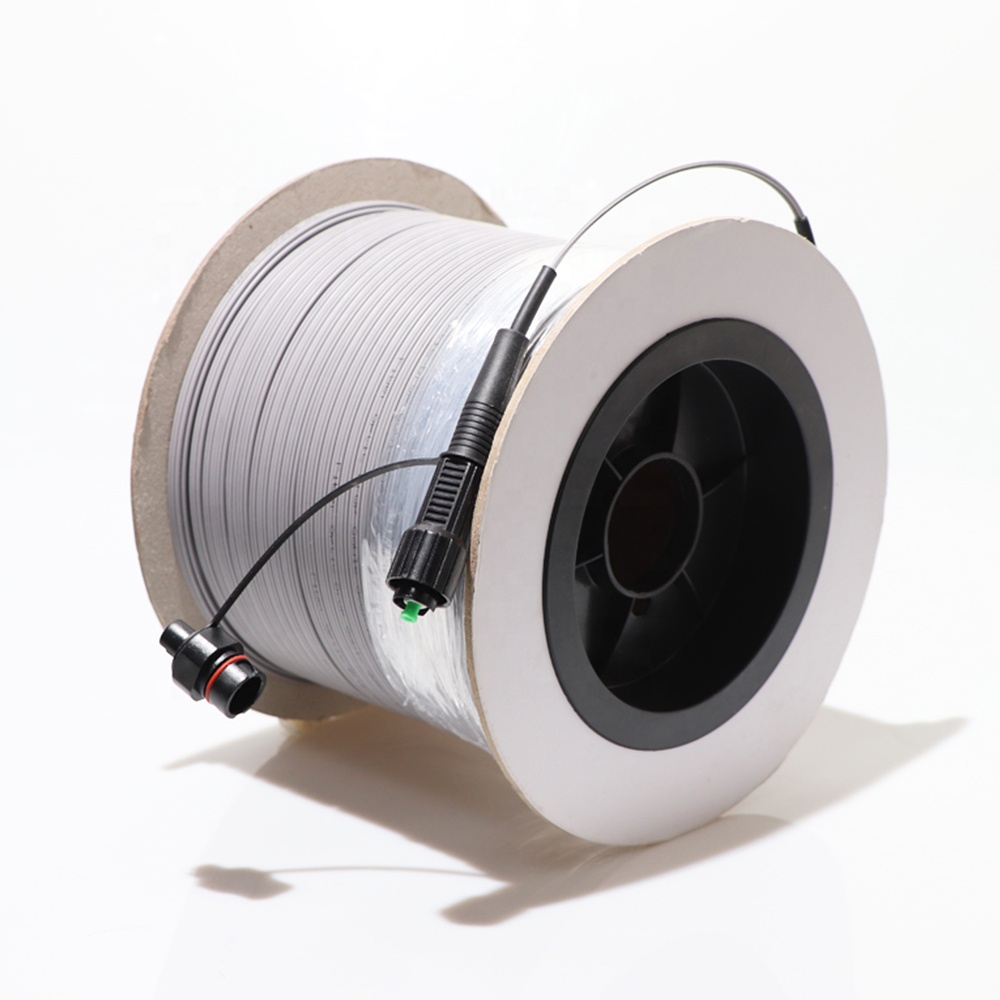

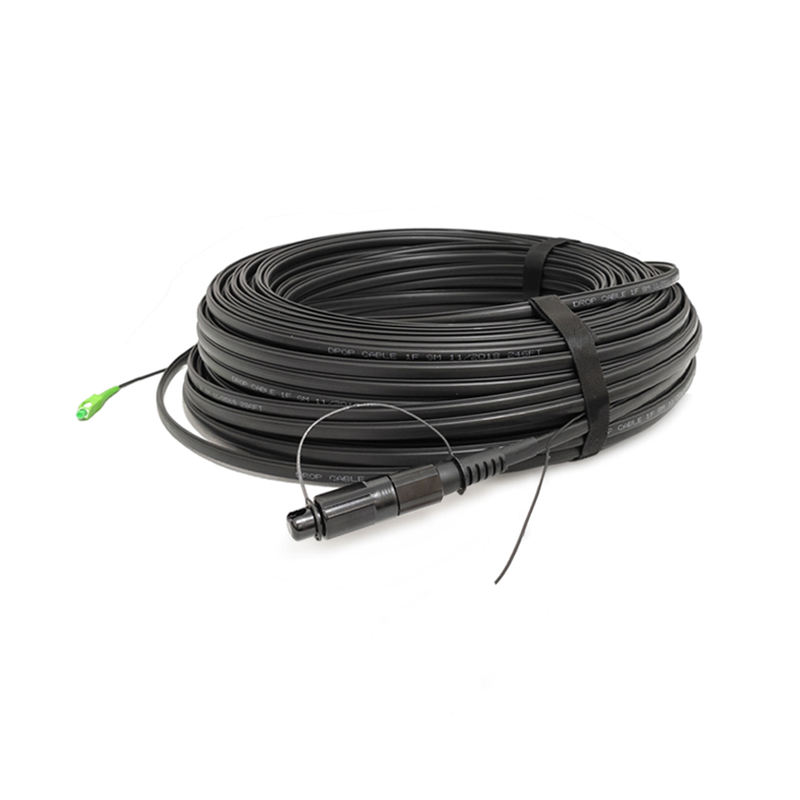

The F105-PDCW-OPT is an outdoor waterproof LSZH drop cable fiber patch cord engineered for FTTH last-mile aerial and buried drops. The flat drop cable with FRP strength members provides excellent tensile strength and waterproofing for direct outdoor deployment.

Key Features:
• Singlemode 9/125μm fiber (G657A2 bend-insensitive available)
• Flat drop cable design with FRP strength members
• LSZH jacket, waterproof and UV-resistant
• Available in 1, 2, and 4 core configurations
• Pre-terminated with SC/LC connectors (UPC/APC options)
• Suitable for aerial, duct, and direct buried drops
• 100% optically tested, RoHS compliant
• 3-year warranty, OEM/ODM available

Specifications:
Model: F105-PDCW-OPT
Fiber Type: Singlemode 9/125μm (G657A1/A2 optional)
Core Options: 1 / 2 / 4 cores
Cable Type: Flat drop cable, FRP strength member
Jacket: LSZH, waterproof, UV-resistant
Connector: SC / LC (UPC / APC)
Insertion Loss: ≤0.2 dB typical (UPC) / ≤0.3 dB (APC)
Application: FTTH aerial / duct / buried drops
Warranty: 3 years

Applications: FTTH/FTTx last-mile drops, PON network distribution, building entrance connections, and outdoor aerial fiber links.
