Product Description
- 2-in-1 design integrating Optical Power Meter and Visual Fault Locator

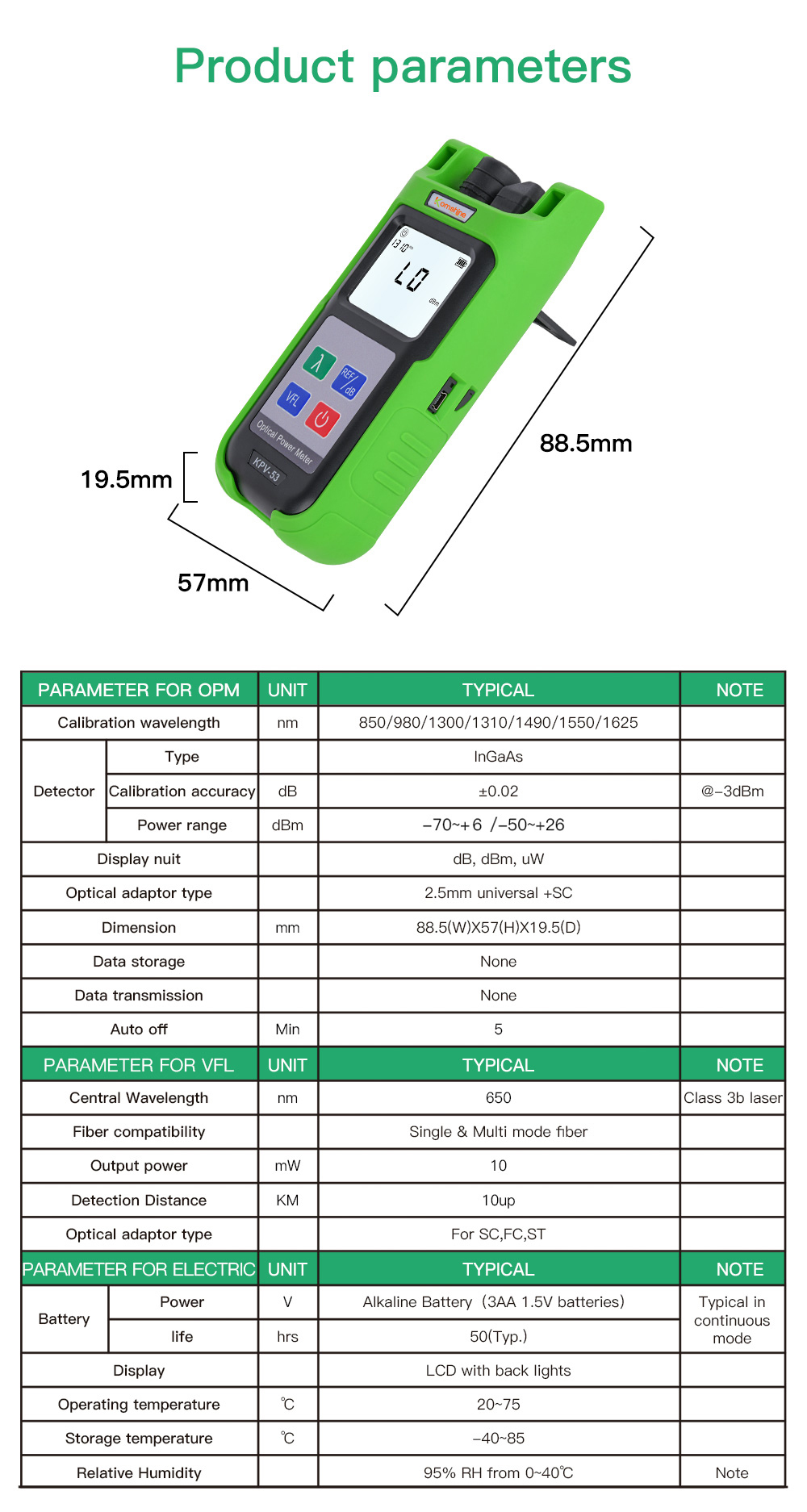

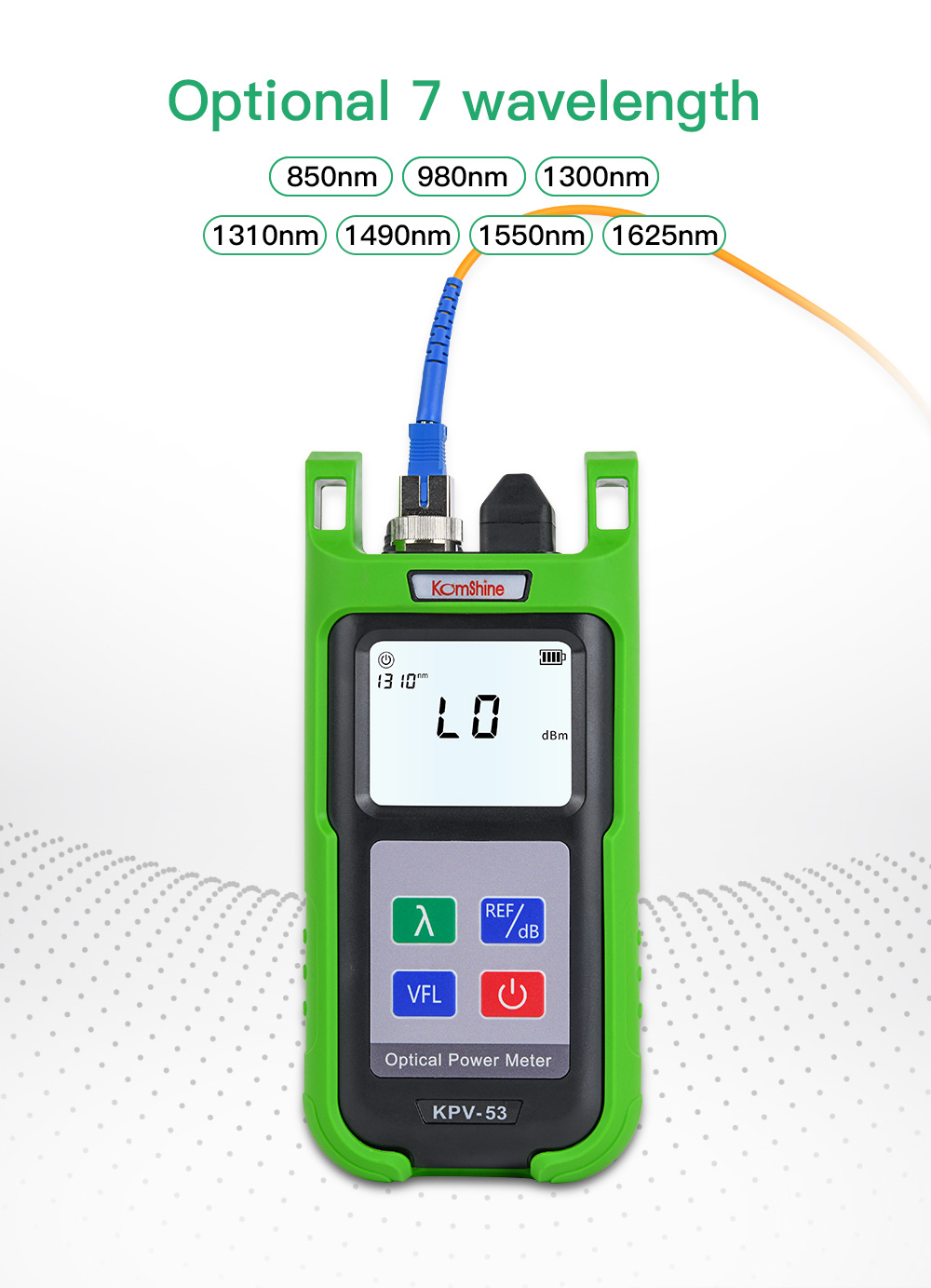

- Supports 7 calibrated wavelengths: 850 / 980 / 1300 / 1310 / 1490 / 1550 / 1625nm
- Measures optical power in dBm, dB, and μW

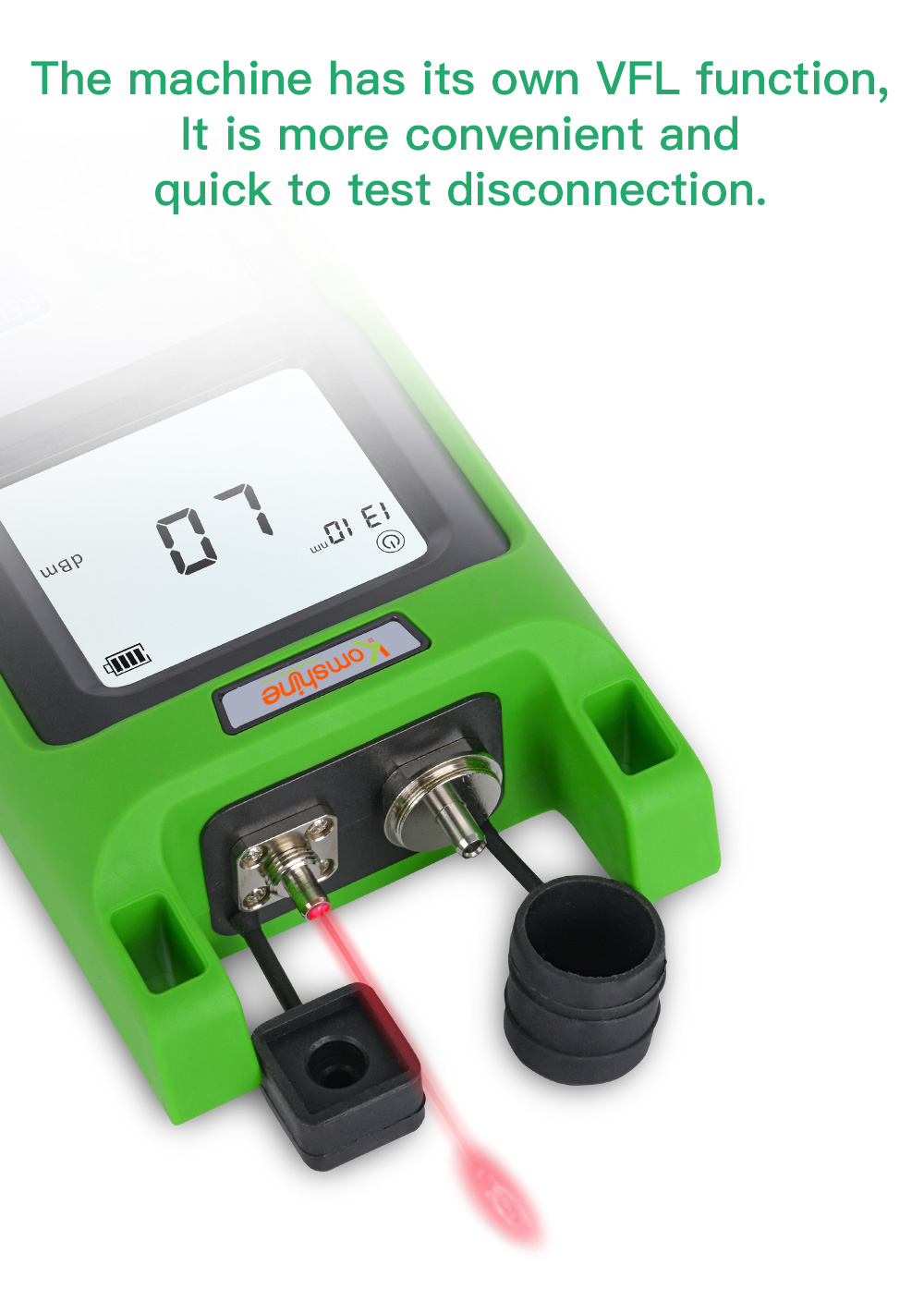

- Built-in 650nm, 10mW VFL with continuous and modulation modes
- Fiber fault detection distance up to 10 km

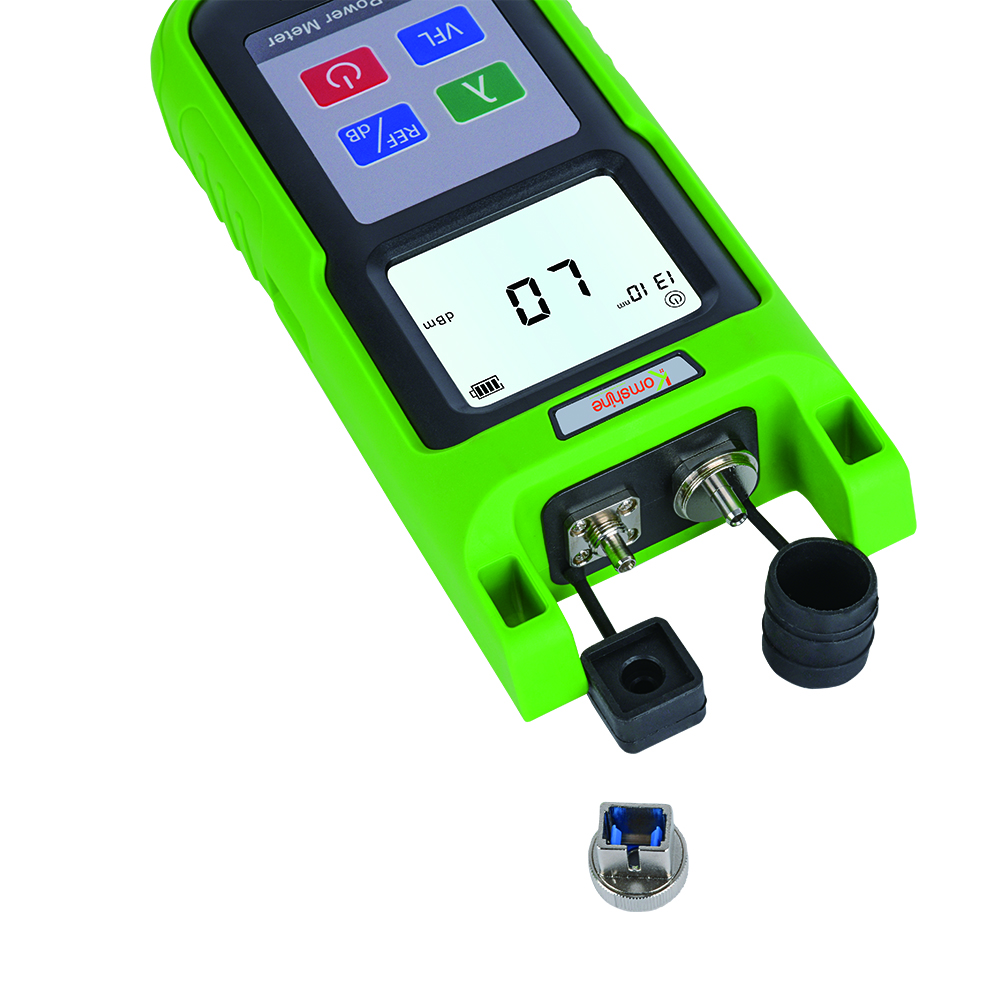

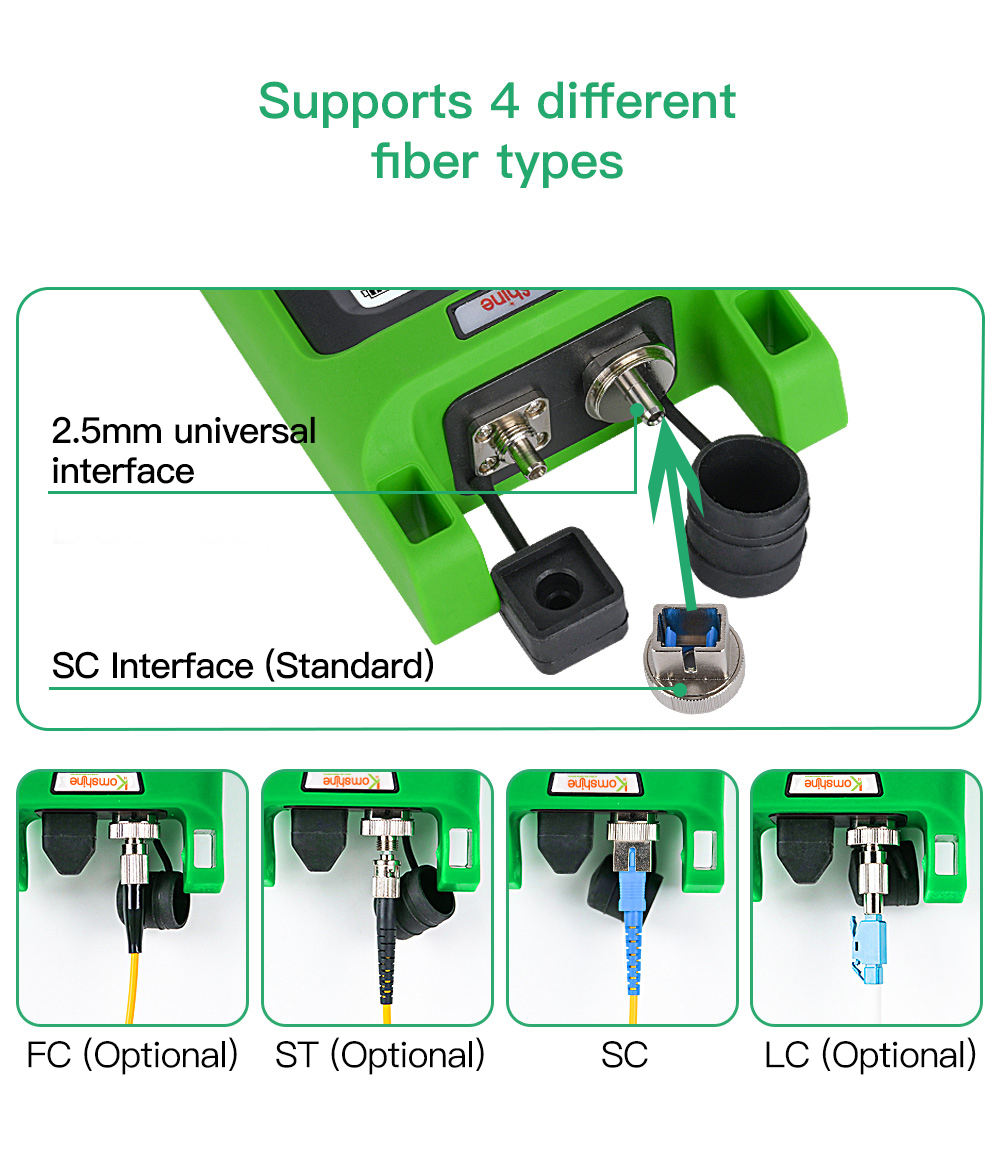

- Universal 2.5mm optical interface, compatible with SC, FC, and ST connectors
- Compact and lightweight handheld design

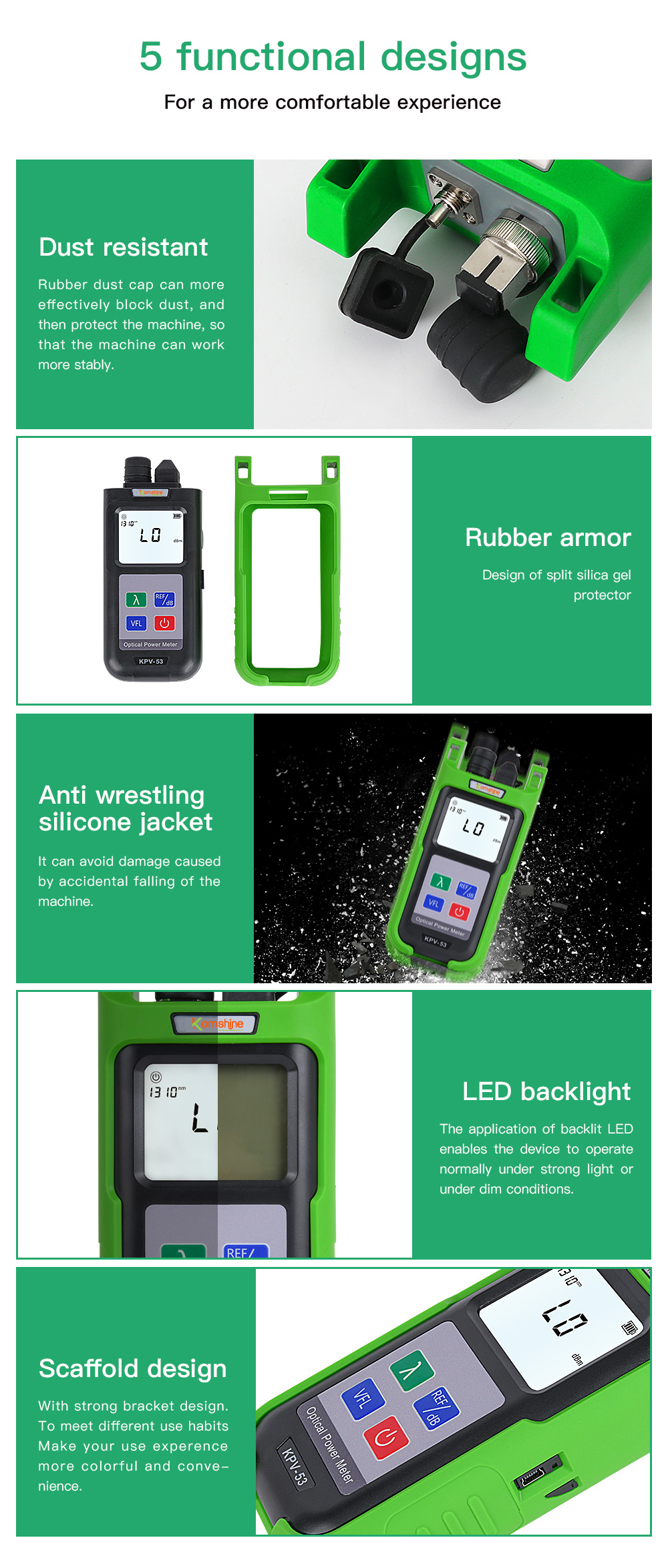

- Silicone anti-drop protective housing for field use
- One-button operation with automatic power-off
- LCD display with backlight for easy reading in low-light environments

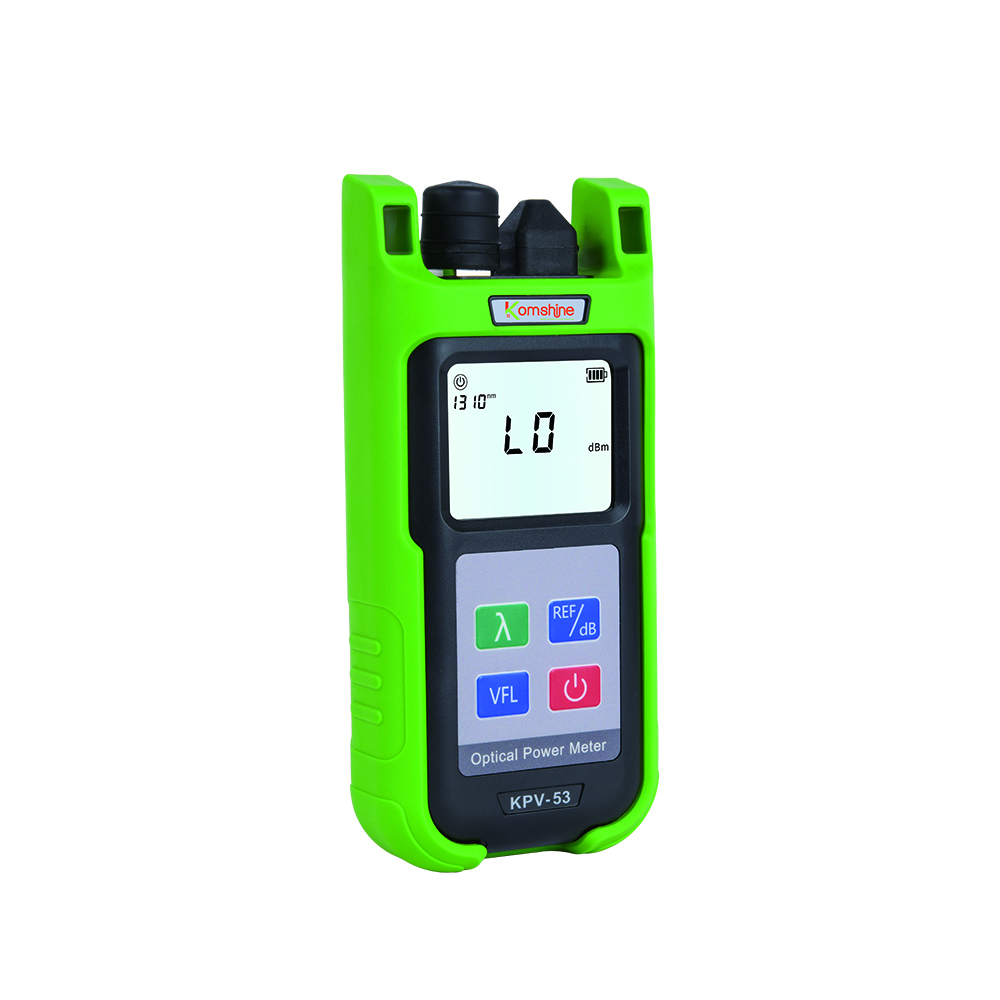

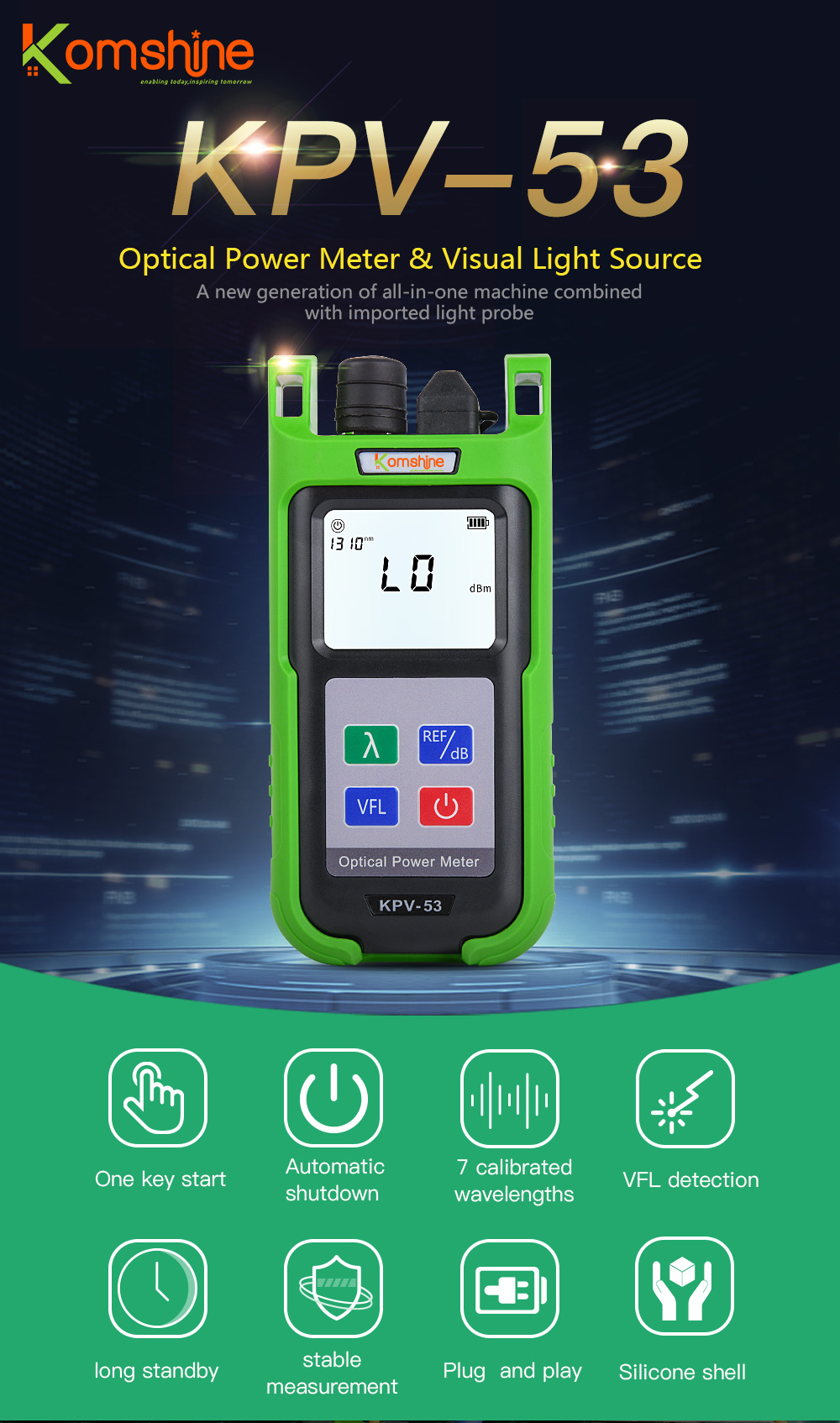

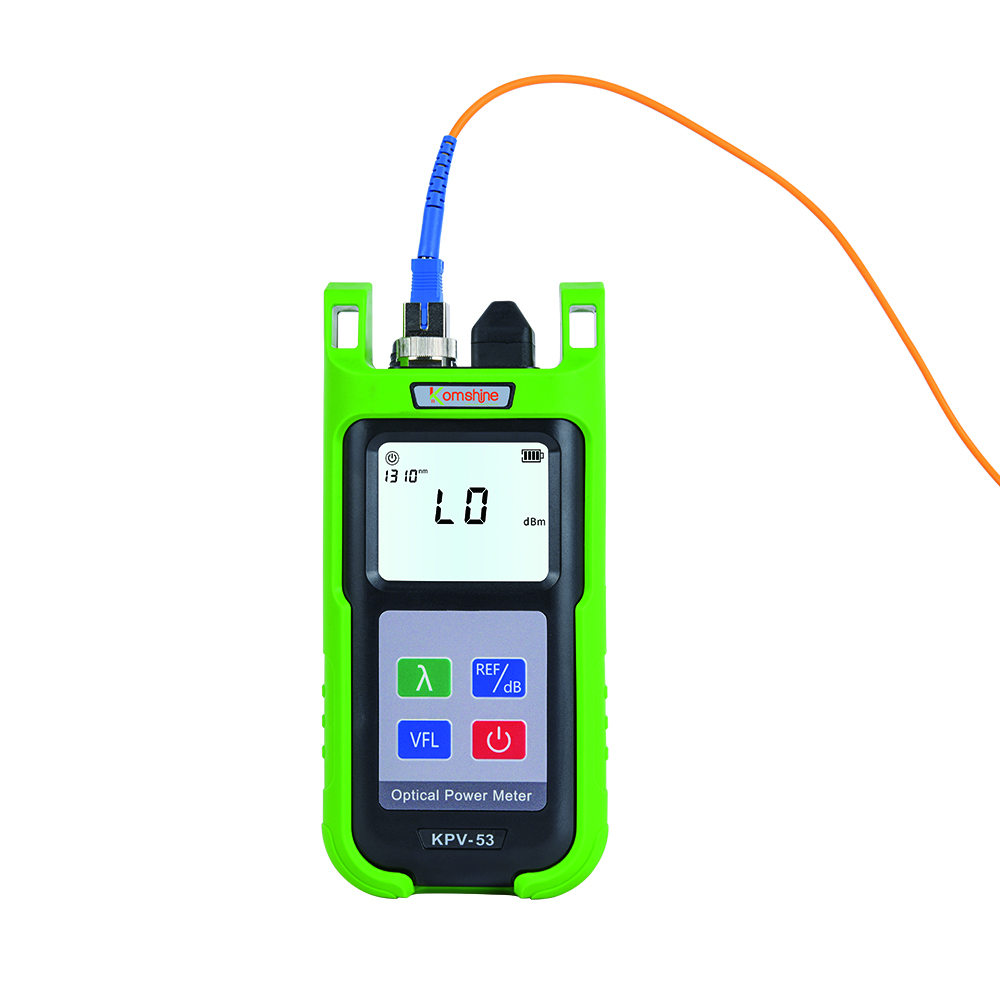

KPV-53 Optical Power Meter with Visual Fault Locator for FTTH Fiber Testing

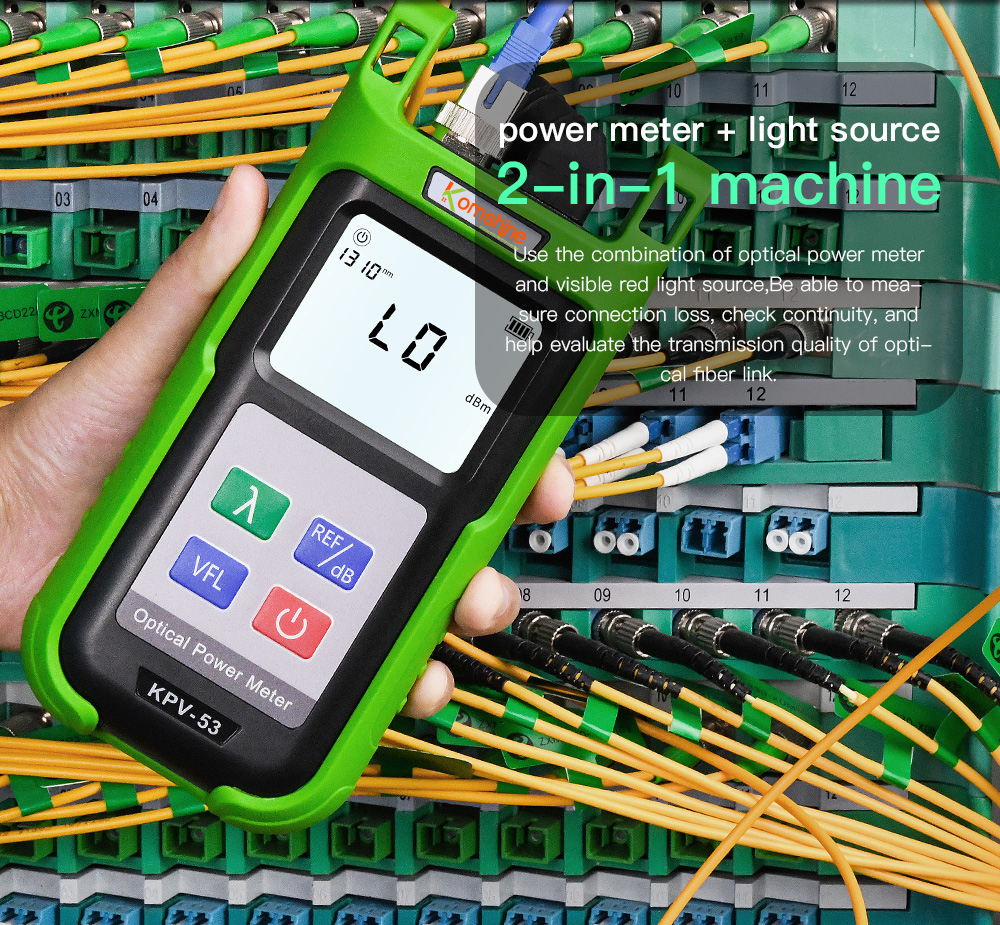

The KPV-53 Optical Power Meter with Visual Fault Locator is a compact 2-in-1 fiber optic testing instrument designed for FTTH, FTTx, telecom, CATV, and data center applications. Combining a high-precision optical power meter with a built-in 10mW Visual Fault Locator (VFL), it enables technicians to perform optical power measurement, fiber continuity verification, and fault location using a single handheld device. Supporting seven calibrated wavelengths (850, 980, 1300, 1310, 1490, 1550, and 1625nm), the KPV-53 accurately measures optical power in dBm, dB, and μW. The integrated 650nm VFL offers continuous and modulation modes with a detection distance of up to 10 km, making it ideal for locating fiber breaks, bends, and faulty connectors. Its compact design, anti-drop silicone protective case, one-button operation, and automatic power-off function make it a reliable testing solution for field engineers and network maintenance professionals.
